Automatizovani vertikalni komisioner

3500 - 6000 mm
1500 kg

Precise pallet handling thanks to laser navigation
Efficient, process-reliable completion of routine tasks
ERP connection via Logistics Interface for optimised processes
Flexibility thanks to adjustable forks
Short payback period thanks to process optimisation

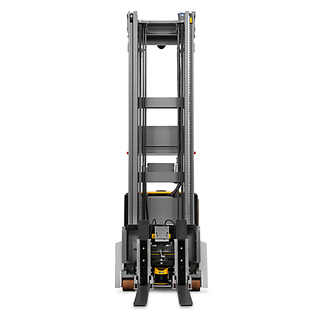

EKS 215a

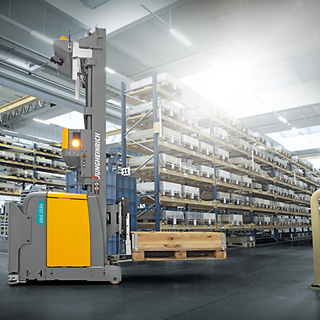

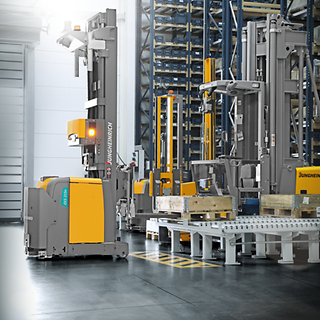

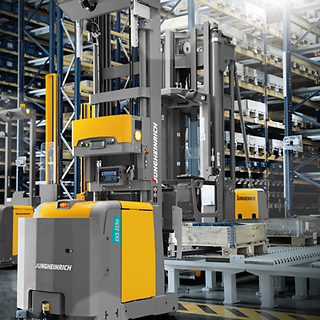

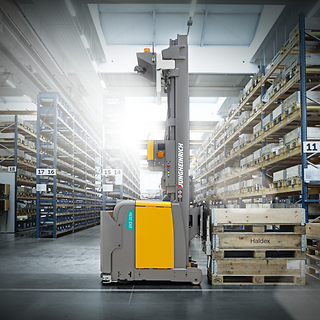

Our flexible and precise EKS 215a is an Automated Guided Vehicle System (AGV-S) based on our tried-and-tested electric medium/high level order picker, which effectively streamlines the processes in your warehouse in combination with automation and navigation components, as well as future-proof software.Modern 48-V 3-phase AC technology ensures long periods of use without battery charging. Active energy management, regenerative braking, the TÜV-certified CAN-Bus control system and other well-engineered safety components guarantee maximum performance and safety. High flexibility is provided by the adjustable forks, which enable the EKSa to transport special load carriers and closed pallets. The AGV-S works with laser navigation using reflectors on the ground. The AGV-S can be used in mixed operations with manual trucks and pedestrians. Whether integrated into existing structures or as part of a new system – the EKS 215a is the perfect choice.

Litijum-jon

JUNGHEINRICH LITIJUM-JONSKA TEHNOLOGIJA

Litijum-jon

Litijum-jonska snaga kompanije Jungheinrich Vam omogućava da budete daleko ispred konkurencije.

SAZNAJTE VIŠE

Karakteristike

Established standard truck used as basis

Standard truck EKS electric medium/high level order picker combined with appropriate safety technology as well as automation and navigation components.
Simple manual operation in mixed mode is performed via the standard controls of the production truck.

Efficient drive technology and equipment

48-V three-phase AC technology for long periods of use without needing to charge the battery.
Active energy and battery management.
Energy recovery during lowering and braking.
Wear-free inversion brake.
TÜV-certified control system (CAN-bus).

Lithium-Ionen-Technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and zero maintenance as compared to lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

Safety system on the vehicle

Standard personal protection scanner in the drive direction and load direction scans the travel route in front of the AGV for obstacles depending on the speed.
Should an obstacle be located in the path of the truck, the AGV will reliably come to a halt in front of it.
The sensor also scans ahead for obstacles when cornering.
Side sensors to protect the sides of the truck.
Emergency disconnect on the truck.

Process reliability in the warehouse

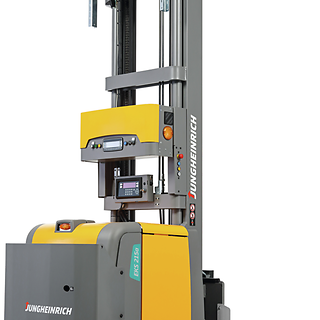

Everything in view with the FTS control console
The graphic display on the AGV control panel displays all the information relating to the AGV in use.
Quick overview of the status of pending transport tasks.
Prioritised orders can be entered and processed in the corresponding order.
Depending on the project-specific requirements, individual customer functions can be specially implemented and activated for the respective system.

Simple system integration

Can be easily integrated into existing IT and network landscapes.
Effortless connection to existing WMS/ERP system via Jungheinrich Logistics Interface.
For communication, the existing WLAN structure is used.

Precise navigation
