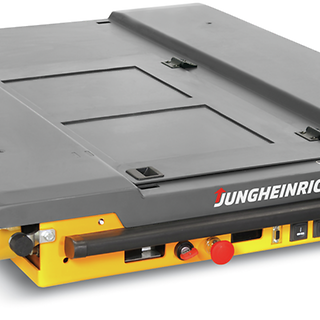

Šatl za regale 1,5 t

27 mm
1500 kg

Collision-free stacking and retrieval of pallets
Flexible handling of different pallet types
Optimal use of space thanks to compact storage
Virtually any Jungheinrich truck can be used
Stacking and retrieval according to the LiFo and FiFo principle is possible

Šatl za regale

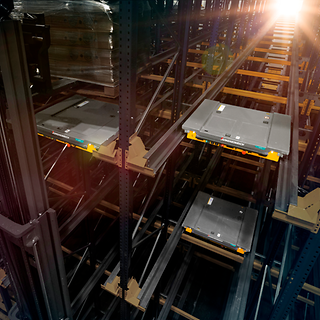

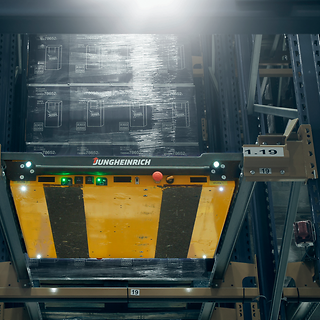

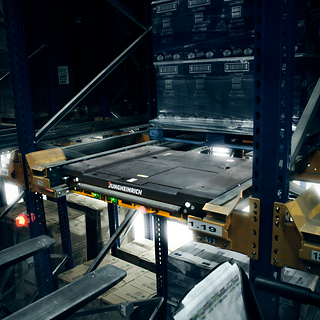

Under Pallet Carriers that travel independently in the pallet channel form the basis of our shuttle compact warehouse system — a complete solution consisting of the channel racking, carrier truck and carrier. The advantages are clear: The shuttle moves independently of the carrier truck under the stored pallets in the channel. This type of rack operation requires fewer aisles and allows for the compact storage of more pallets across the same warehouse space. Stacking and retrieval can also be carried out according to the LiFo or FiFo principle. For maximum flexibility, different variants of the shuttle system allow the handling of various load carriers, such as Euro pallets or industrial pallets in the same racking system. Sensors automatically detect the size and position of the pallets and prevent collisions with other pallets. In order to offer the greatest possible protection to man and machine in automated warehouse operation, our UPC shuttles are optionally equipped with the PPS personal protection system.

Prednosti

Nosači za palete koji putuju nezavisno u paletnom kanalu čine osnovu našeg kompaktnog skladišnog sistema šatla — kompletno rešenje koje se sastoji od regala sa kanalima, transportnog vuljuškara i nosača. Prednosti su jasne: šatl se kreće nezavisno od transportnog viljuškara ispod uskladištenih paleta u kanalu. Ovaj tip rada regala zahteva manje prolaza i omogućava kompaktno skladištenje više paleta u istom skladišnom prostoru. Slaganje i preuzimanje se takođe može izvršiti po principu LiFo ili FiFo. Za maksimalnu fleksibilnost, različite varijante šatl sistema omogućavaju rukovanje različitim nosačima tereta, kao što su evro palete ili industrijske palete u istom regalnom sistemu. Senzori automatski otkrivaju veličinu i položaj paleta i sprečavaju kolizije sa drugim paletama. Da bi pružili najveću moguću zaštitu ljudima i mašinama u automatizovanom radu skladišta, naši UPC šatlovi su opciono opremljeni PPS sistemom lične zaštite.

Karakteristike

Efficient for two and three-shift operation

Separate battery charger for the carrier for easy charging at any 230-V mains socket.
Depending on the intensity of use, the carrier can be used for eight to ten hours with a fully charged battery pack.
An additional second battery pack—in conjunction with the optional battery charging station—considerably increases the operating period in two/three-shift operations.
Battery tray allows the battery to be exchanged in seconds.
High throughput and time savings, especially during complete filling or emptying of the pallet channels.

User-friendly hand-held radio terminal

Operating terminal and controller communicate via a bi-directional radio link run on the registration-free ISM band (433 MHz).
Ergonomic, mounted in the operator's field of vision.
Simple operation and clear information display.
Clear layout of function keys.
Numerous diagnostic functions for the Jungheinrich Service department.
Also suitable for mobile use.
Alternative if a WMS already exists: virtual operation on the touchscreen of a data radio terminal, realistic display and functionality and thus increased operator ergonomics.
With larger racking systems, up to 69 different carriers can be selected using a hand-held radio terminal. The operator only needs to change the identification on the hand-held terminal to contact the next carrier.

UPC with personal safety system PSS (optional)

Prevents unauthorised access to a pallet channel or aisle.
If an alarm sounds then the UPC carriers can be brought to a standstill by the PPS.
Authorised trucks, which are identified automatically, are not prevented from accessing the rack operating equipment.
Extensive protection when moving UPC carriers, pallets and loads is one of the measures recommended by the BGHW (German employer's liability insurance association for trade and goods distribution) to reduce hazards.

Greater reliability

More than 4,700 Jungheinrich after-sales service engineers are available around the clock worldwide.
Spare parts availability of 98 %, including overnight delivery.

Special functionalities

Stacking and retrieval based on LiFo (Last in, first out) and FiFo (First in, first out) is made easy.
When completely emptying a channel, e.g. for a delivery order, the UPC automatically transfers each pallet from the channel to the retrieval area where it is collected with a forklift truck and taken to goods outward.
This function is also possible if a specific number of pallets are to be retrieved.
Compression: If no stacking or retrieval operations are required, (e.g. at the end of the shift), all pallets can be automatically moved to the retrieval area.

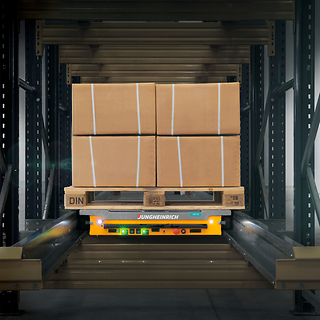

Flexible handling of different load carriers

Euro pallets.
Industrial pallets.
Euro and industrial pallets in the same racking system: combination carriers with sensors for detecting the pallet size.
Chemical pallets.
Other variants available on request.

UPC compact warehouse system in cold store

Shuttle system in cold store version (optional) can be used in temperatures down to -30°C.
Increased operational readiness thanks to additional battery pack with charging station.
