Komisioner 2,0 - 2,5t

125 mm
2500 - 2700 kg

Optimum picking performance with low energy consumption
Powerful motor with high acceleration
jetPILOT for intuitive operation same as driving a car
Extensive options for an optimal workplace

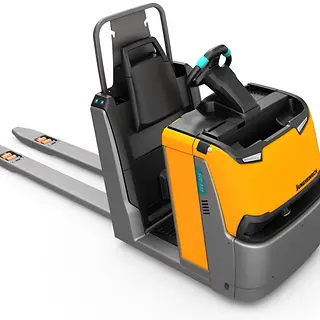

Semi-automatic remote control easyPILOT (optional)

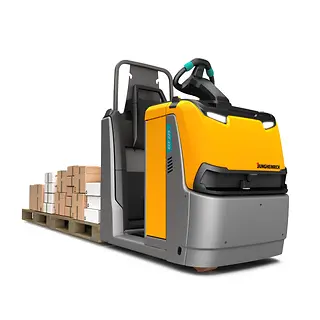

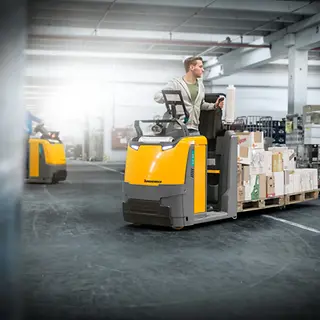

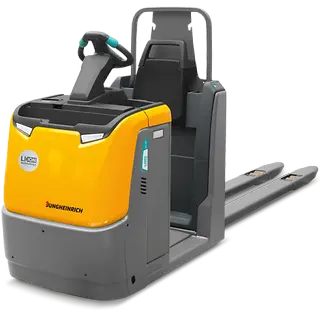

ECE 220/ 225

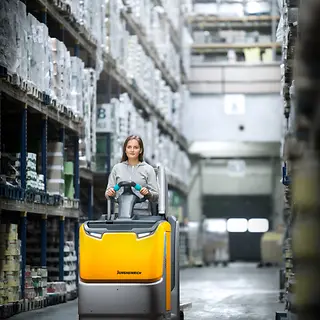

Our flexible and efficient series 2 low level order pickers combine highest picking performance with optimum energy efficiency and first-class driving comfort. Offering various operating levels, these vehicles cover individual storage requirements without the slightest effort. Working with the ECE means optimised picking processes with maximum performance. Picking comfortably, safely and without delay: Particularly high battery capacities guarantee highest picking rates, even in economic multi-shift operations. The sturdy construction and compact dimensions allow easy cornering with fast acceleration. Furthermore, a cushioned, adjustable stand-on platform protects against impact. The spacious driver's seat with height-adjustable jetPILOT multifunction steering wheel and easy to reach controls provide high riding comfort. Assistance systems such as the dayLED daytime running lights, floor spot or the optional curveCONTROL ensure the necessary safety.

Litijum-jon

JUNGHEINRICH LITIJUM-JONSKA TEHNOLOGIJA

Litijum-jon

Litijum-jonska snaga kompanije Jungheinrich Vam omogućava da budete daleko ispred konkurencije.

SAZNAJTE VIŠE

Prednosti

Povezani viljuškari

Koristite podatke sa svojih viljuškara da uštedite vreme, energiju i novac i povećate efikasnost. Naša telematička kutija Vam pruža besplatan početni paket za upravljanje voznim parkom koji se može fleksibilno proširiti različitim hardverskim i softverskim komponentama.

Karakteristike

Powerful and efficient drive concept

Powerful acceleration and high top speed.
Optional drivePLUS package with highly efficient 3.2 kW motor for even greater drive and acceleration performance.
Safe cornering speed thanks to load-dependent curveCONTROL (optional).
Optional drive&ecoPLUS package for additional energy saving.

Flexible switching between different control options

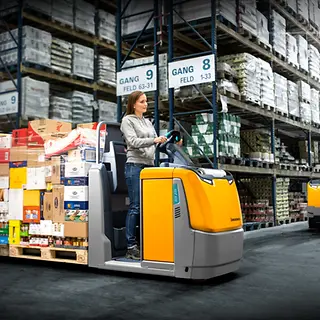

Long distances (from approx. 10 m): Travelling with jetPILOT.

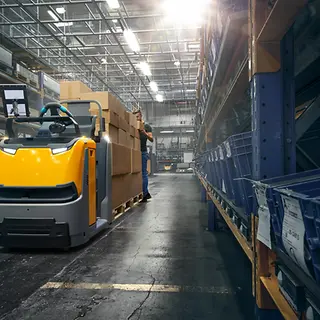

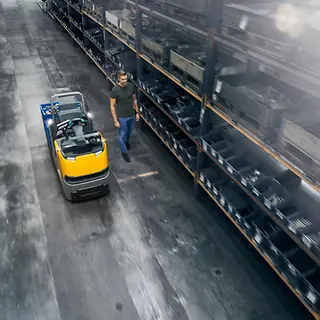

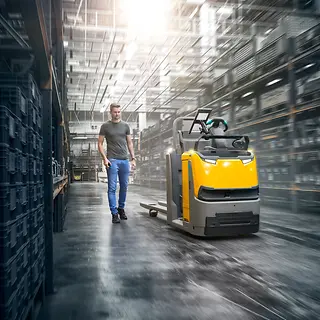

Medium distances: Remote operation with Jungheinrich easyPILOT allows for full focus on the picking process.

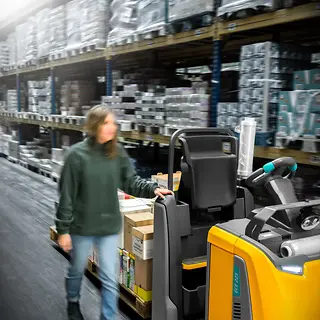

Short distances: Positioning at the correct pallet and fine adjustment, e.g. via touch mode on the backrest (optional).

Available with lithium-ion technology

High availability thanks to extremely short charging times.
No battery exchange required.
Saving costs due to longer service life and low maintenance in comparison with lead-acid batteries.
No charging rooms and ventilation required as there is no build-up of gas.

Comfort charging system for lithium-ion batteries

Battery charging system with comfort charging socket and plug for time-saving booster charging.
Simple and intuitive handling.

Rugged construction for the toughest applications

Impact-protected drive panel and raised frame apron made from high-quality steel.
Torsion-resistant load forks with draw bar kinematics prevent distortion, even with heavy loads and long support arms.
2.5 t for the transport of up to 3 pallets simultaneously.

Hydraulically lifting stand-on platform (HP)

For frequent order picking from the second racking level (optional).
Rapid and safe raising of the operator up to the height of the battery panel.
Operation of platform via foot pedal, leaving hands free for order picking.
The optional jetPILOT can be raised together with the platform (HP-LJ), allowing the truck to be positioned even when the platform is raised.

Central display and clear instruments for complete overview

Activation of the truck by EasyAccess via softkey, PIN code or optional transponder card.
The 2-inch display provides information on the battery discharge status, number of operating hours, travel speed as well as error codes.
Selection from three travel programs via softkey (optional).

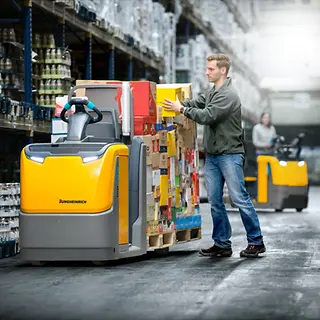

Perfect workstation for maximum picking performance

Various, individually adjustable storage options.
Additional cushioned and movable stand-on platform (optional).
Quick lifting of the load through optional double actuation of the lifting button.

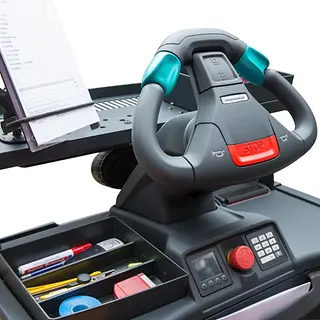

jetPILOT multifunction steering wheel

Intuitive and comfortable operation, similar to a car, with safe and secure grip.
Reduced strain on neck and spinal column when cornering.
One-handed operation and automatic return of the steering wheel to straight line travel.
Adjustable to individual body size.

Additional optional equipment

A comprehensive range of accessories allows for individual tailoring to your requirements.
Additional accessories for working at the second racking level.
Sturdy, universally applicable options bracket, e.g. for radio data transmission components.
Increased ease of use with optional sprung stand-on platform to reduce the vibrations felt by the operator.



Pregled modela

Model	Kapacitet	Visina podizanja	Brzina putovanja	Ukupna dužina	Napon baterije
ECE 225	2.500 kg	125 mm	14 km/h	3.670 mm	24 V
ECE 225 HP	2.500 kg	125 mm	14 km/h	3.820 mm	24 V
