Bočno sedeći staker 1.4 - 1.6t

2800 - 6200 mm
1400 - 1600 kg

Display featuring steering position indicator and travel program selection.
Maximum speed and acceleration.
Ergonomic seating position for perfect all-round visibility.
multiPILOT for comfortable operation.
Initial lift available for uneven ground.

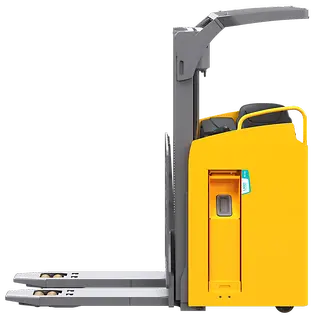

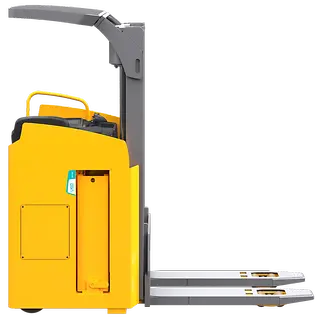

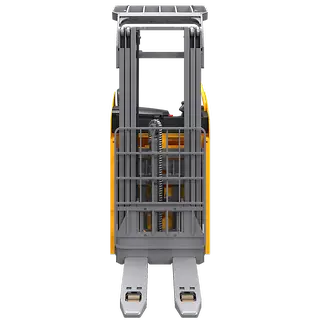

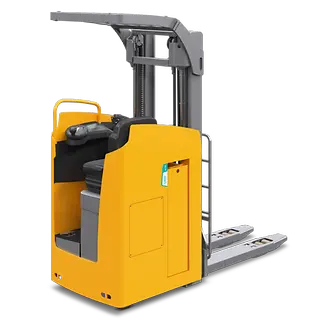

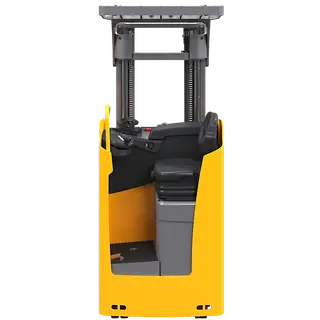

ESC 214-316 / 214z-316z

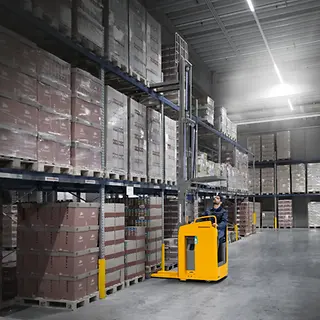

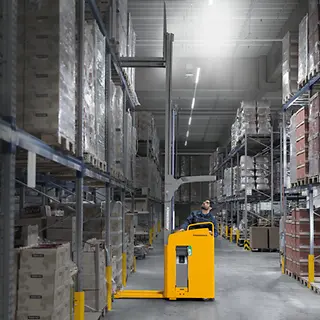

Series 2 and 3 of our ergonomic and robust ESC transverse-seated stackers are ideal for intensive applications at great heights and for transport over longer distances. Thanks to their compact design and stable frame, they are perfect for demanding applications in block warehouses or confined warehouse environments. Equipped with a powerful drive and lift motor, the ESC easily reaches high speeds and impresses with rapid acceleration when safely and efficiently transporting goods. The transverse seating position allows the operator to maintain all-round visibility at all times, while the multiPILOT enables easy changes of direction with minor steering movements. With the Series 2, you can manoeuvre easily within narrow aisle widths, while the Series 3 enables you to enjoy the best ride comfort thanks to increased legroom.

Litijum-jon

JUNGHEINRICH LITIJUM-JONSKA TEHNOLOGIJA

Litijum-jon

Litijum-jonska snaga kompanije Jungheinrich Vam omogućava da budete daleko ispred konkurencije.

SAZNAJTE VIŠE

Prednosti

Povezani viljuškari

Koristite podatke sa svojih vljuškara da uštedite vreme, energiju i novac i povećate efikasnost. Naša telematička kutija Vam pruža besplatan početni paket za upravljanje voznim parkom koji se može fleksibilno proširiti različitim hardverskim i softverskim komponentama.

Karakteristike

Efficient energy management

Optimum energy supply with high battery power between 360 Ah and 465 Ah in the lead-acid range.
Quick and easy lateral battery exchange.

Available with lithium-ion technology

High truck availability thanks to extremely short charging times.
No battery exchange required.
Cost savings due to longer service life and zero maintenance when compared to lead-acid batteries.
No charging rooms or ventilation required as there is no build-up of gas.
High flexibility of use due to modular concept with 130 Ah, 260 Ah or 390 Ah.
Comfort charging socket available as standard and built-in charger as an option.

Comfortable and safe travel

Speed regulation and precise control of the travel speed by impulse control system for maximum safety when in motion.
Roll-back protection on gradients with automatically activated brake.
Constant travel speed on gradients or descents.
Grab handle for safe entry and exit.

Simple operation and excellent all-round visibility

Operation of all travel and lift functions via multiPILOT without changing grip.
Excellent all-round visibility and good view through the mast and overhead guard for the operator.
Proportional hydraulics with lift height display for precise load positioning.
Easy-to-operate electric steering.
Protected seating position within the enclosed contours of the truck.

Assistance systems increase your safety

Superior mastery of every curve in load-independent cases thanks to curveCONTROL.
Efficient hazard management with the optional zoneCONTROL.
Minimised collision damage with the steering position indicator in the display.
Avoidance of collisions with the help of the Floor-Spot warning zone lights.

Performance-enhancing ergonomics

With the operator positioned sideways to the direction of travel, optimum visibility is ensured and potential neck pain prevented.
Safety switch in the foot-well for maximum safety.
Comfort seat with weight adjustment and upholstered knee and arm area.

Versatile utilisation and excellent manoeuvrability

To effortlessly overcome uneven ground, the version with initial lift has support arms which can be raised independently of the forks.
Short aisle width and well protected operator position for optimum application in narrow working aisles.

Additional equipment

Cold store version.
Seat heating.
Writing pad.
USB charging socket.


Pregled modela

Model	Kapacitet	Visina podizanja	Brzina putovanja	Ukupna dužina	Napon baterije
ESC 214	1.400 kg	5.350 mm	9,1 km/h	2.125 mm	24 V
ESC 216	1.600 kg	6.200 mm	9,1 km/h	2.125 mm	24 V
ESC 214z	1.400 kg	5.350 mm	9,1 km/h	2.140 mm	24 V
ESC 216z	1.600 kg	6.200 mm	9,1 km/h	2.140 mm	24 V
ESC 316	1.600 kg	6.200 mm	9,1 km/h	2.125 mm	24 V
ESC 316z	1.600 kg	6.200 mm	9,1 km/h	2.155 mm	24 V
