Stage AMX 10_10e

Ručni paletari

Makazasti paletar 1,0t

714 mm
1000 kg

Available with manual or electronic hydraulic system
800 mm maximum lift for ergonomic usage
Optionally fitted with lateral support wheels
Ergonomic tiller for right- and left-handed operators alike
Energy and time-saving fast lift for up to 120 kg

AMX 10/ 10e

Karakteristike

Efficient Handling

Smooth controls equally suitable for both left-handed and right-handed operators.
Particularly sensitive and controlled lowering of goods with the special lowering valve.
The standard fast lift (up to 120 kg) ensures that Euro pallets can be lifted clear of the floor with just 3 pump strokes.
The maximum lift height is achieved with only 26 pump strokes.
Optimised hydraulic system for effortless pumping.
Drawbar pull required is reduced by the bushes on the wheels.

Built-in charger (AMX 10e)

Standard built-in rectifier.
Charging of maintenance-free batteries on every 230 V electricity outlet.
Charger with automatic switch-off after finished charging.

Safe and robust

Varying work heights up to 800 mm for a healthy posture during work.
Optional equipment: Lateral support wheels for movement of goods while lifted.

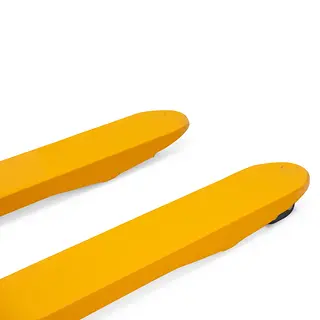

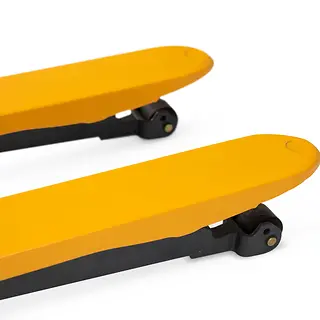

Closed fork tips in welded construction are torsion free and extremely robust.
Pump unit with integrated tank and lowering valve for sensitive lowering through manual lever.
Pressure limiting valve to protect hydraulics from overloading.

Maximum stability and durability

Strong forks and contoured shapes.
Welded tiller mounting.
Protected entry rollers.
Hardened steel.

Individual equipment

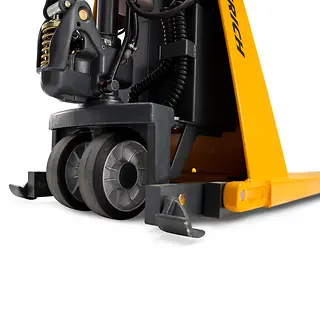

Different materials for wheels and rolls available, depending on ground condition and application scenario.
Lifting and lowering: Manual or electro-hydraulic with 0.5 kW lift motor.

AMX 10 manual hydraulic

Load can be brought to the optimum work height with just a few movements of the tiller.
Beyond a certain fork height, the scissor lift hand pallet truck is secured by additional support legs.

AMX 10 electronic hydraulic

Scissor lift hand pallet trucks are recommended for frequently changing work heights.

The work height can be easily adjusted at the touch of a button.

Battery: 70 Ah C5, maintenance-free.

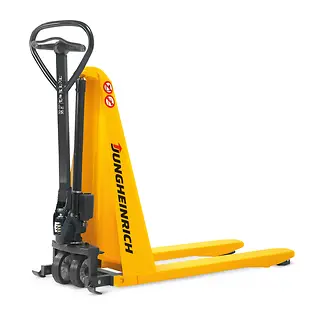

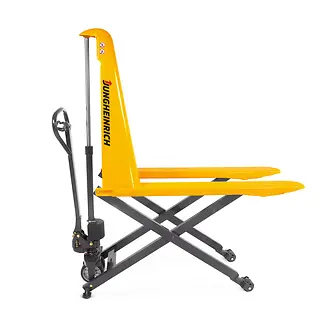

AMX10

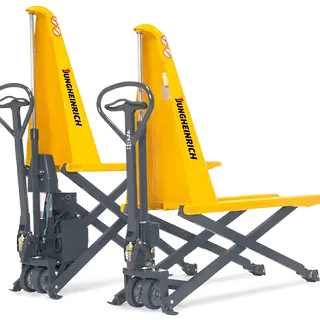

AMX10

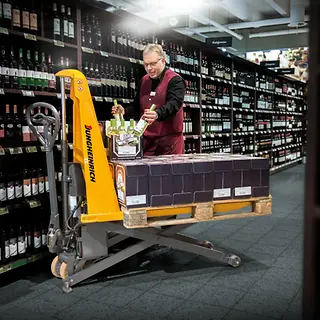

AMX10 im Einsatz

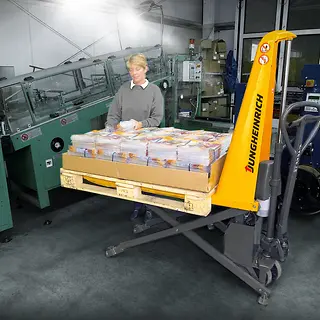

AMX10 im Einsatz

Pregled modela

Model	Kapacitet	Visina podizanja	Brzina putovanja	Ukupna dužina	Napon baterije
AMX 10e, 560x1150, C-GN, SH	1.000 kg	714 mm	0 km/h	1.650 mm	12 V
AMX 10e, 560x1150, N-GN, SH	1.000 kg	714 mm	0 km/h	1.650 mm	12 V
AMX 10e, 1150, V-GV, SH	1.000 kg	714 mm	0 km/h	1.650 mm	12 V
AMX 10e, 680x1150, N-GN, SH	1.000 kg	714 mm	0 km/h	1.650 mm	12 V
AMX 10e, 680x1150, C-GN, SH	1.000 kg	714 mm	0 km/h	1.650 mm	12 V
AMX 10e, 1150, V-V-GV, SH	1.000 kg	714 mm	0 km/h	1.650 mm	12 V
AMX 10, 560x1150, C-GN, SH	1.000 kg	714 mm	0 km/h	1.650 mm	-
AMX 10, 560x1150, N-GN, SH	1.000 kg	714 mm	0 km/h	1.650 mm	-
AMX 10, 560x1150, V/V-GV, SH	1.000 kg	714 mm	0 km/h	1.650 mm	-
AMX 10, 680x1150, N/GN, SH	1.000 kg	714 mm	0 km/h	1.650 mm	-
AMX 10, 680x1150, C-GN, SH	1.000 kg	714 mm	0 km/h	1.650 mm	-
AMX 10, 680x1150, V-V-GV, SH	1.000 kg	714 mm	0 km/h	1.650 mm	-

Preuzimanja

AMX-10_Factsheet_EN_2024-12.pdf pdf (1,4 MB)

Technical data AMX 10 pdf (1,4 MB)
